Reverse Engineering

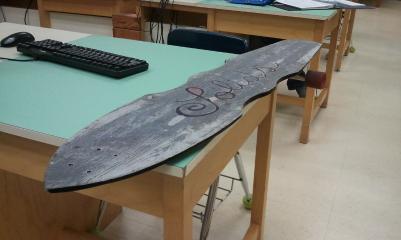

During the high school Intro to Engineer and Design class, we received the assignment of reverse engineering a product of our choice. My partner, Hunter Bjork and I, Leonardo Salinas, set out to reverse a Solids brand longboard. We have completely disassembled and digitally recreated the longboard of choice. The actual board and the digital rendering of the board can be seen on the left and the main components of the board can be seen below in two pictures. Detailed renderings and real pictures of the parts can be seen on the Reverse Engineering page. This page also includes the mass properties for each part.

Longboard Deck

Matirial: Hard Pine

Density: 0.0306 lbs/in^3,

Surface area: 774.196 in^2

Volume: 232.936 in^3

Mass: 7.1278416 Lbmass

 Wheel Washer

Mass:0.492 lbmass

Density:2.701 g/cm^3

Volume:5.027 in^3

Surface Area:43.624 in^2

Material: Aluminum

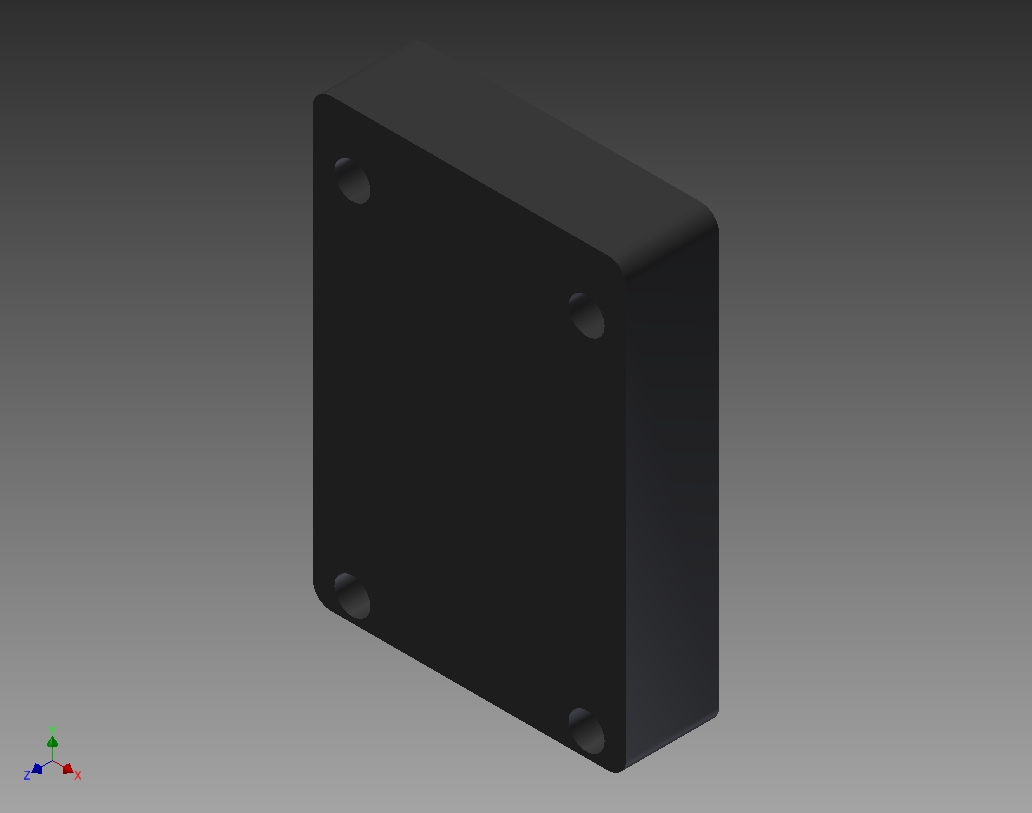

Truck Spacer

Matirial: Rubber

Density:0.0428 lbs/in^3,

Surface area:21.758 in^2

Volume: 4.214in^3

Mass:  0.1803592 Lbmass

Truck Part 2

Matirial: Aluminum

Density:0.0979 lbs/in^3,

Surface area: 21.423in^2,

Volume: 2.375 in^3

Mass:0.2325125 lbmass

Wheel (front and back views to show shape).

Matirial: Urathane,

Density: 2.00 lbs/in^3,

Surface area: 26.969 in^2,

Volume: 6.143 in^3

Mass: 12.268 lbmass

Spacer Screw Washer

Mass: N/A

Density: 2.710 g/cm^3

Volume: 0.001 in^3

Surf. Area: 0.153 in^2

Material: Alluminum

Wheel Washer

Mass: N/A

Density: 2.710 g/cm^3

Volume: 0.002 in^3

Surface Area 0.215 in^2

Material: Metal

Wheel Bolt

Mass: 0.002 lbmass

Density: 2.710 g/cm^3

Volume: 0.020 in^3

Surface Area: 0.832 in^2

Material-: Metal

Bearing

Matirial: Stainless Steel

Density: 0.2799 lbs/in^3,

Surface area: 4.672 in^2,

Volume: 0.160 in^3

Mass: 0.044784 lbmass

 Sterring spacer (yellow)
